Item # 5833010, Socket Stub End On Asahi/America

CAD (0) ▾

Request Information Add to CAD Cart

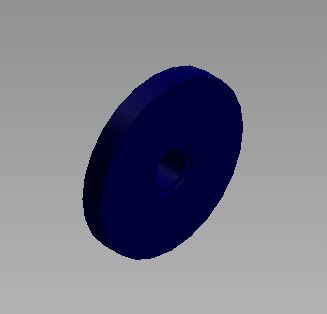

32mm (1'') Airpro Socket Stub End

Unit of Measure

Specifications | Dimensions

Specifications

Material	N/A PE
Operating Pressure [Max]	N/A 230 psi
End Type	N/A Socket
End Size	N/A 1
Second End Size	N/A 1

Dimensions

Size	N/A 1 in32 mm
Length (L)	N/A 0.98 in
Outside Diameter (OD)	N/A 2.68 in
s	N/A 0.75 in
k	N/A 0.38 in
