Item # 5824101, Socket Reducing Tee On Asahi/America

CAD (0) ▾

Request Information Add to CAD Cart

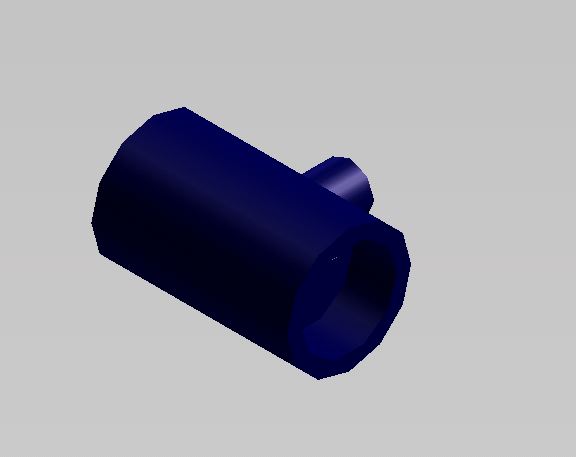

25 x 20mm (3/4 x 1/2'') Airpro Socket Reducing Tee

Unit of Measure

Specifications | Dimensions

Specifications

Material	N/A PE
Operating Pressure [Max]	N/A 230 psi
End Type	N/A Socket
End Size	N/A 3/4
Second End Type	N/A Socket
Second End Size	N/A 3/4
Third End Type	N/A Socket
Third End Size	N/A 1/2

Dimensions

Size	N/A 3/4 x 1/2 in25 x 20 mm
Height (H)	N/A 1.24 in
Length (L)	N/A 2.66 in
k	N/A 0.61 in
s	N/A 0.72 in

Asahi/America, Inc. provides CAD/BIM files “as is” without guarantees. The company is not liable for any damages, including lost profits or revenue, resulting from the use of these files. Users are responsible for verifying the accuracy and suitability of the CAD content, and all associated risks are assumed by the user.

All file types associated with https://cad.asahi-america.com/ are owned and maintained by Asahi/America, Inc. Asahi/America will never require payment for any of our standard product files. Please be cautious of any external, third-party websites or software who may be charging for Asahi/America product downloads and report them to us immediately at asahi@asahi-america.com.
