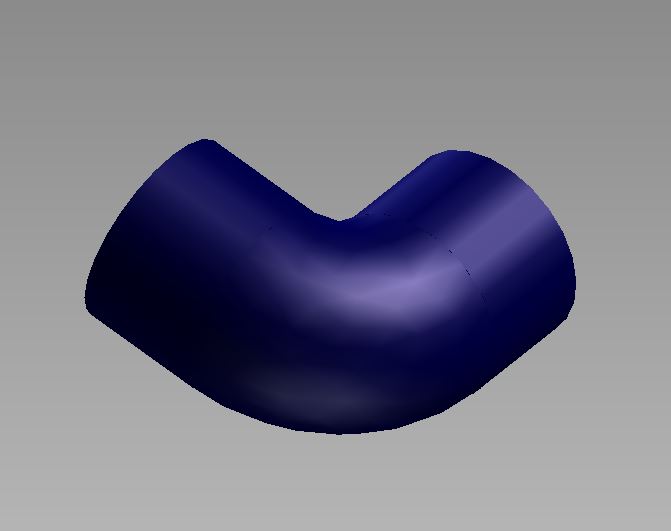

Item # 5805005, Socket 90 Elbow On Asahi/America

CAD (0) ▾

Request Information Add to CAD Cart

20mm (1/2'') Airpro Socket 90

Unit of Measure

Specifications | Dimensions

Specifications

Material	N/A PE
Operating Pressure [Max]	N/A 230 psi
Angle	N/A 90 º
End Size	N/A 1/2
End Type	N/A Socket
Second End Type	N/A Socket
Second End Size	N/A 1/2

Dimensions

Size	N/A 1/2 in20 mm
k	N/A 0.55 in
s	N/A 0.63 in
z	N/A 1.18 in
